Landscape Transformer
Description

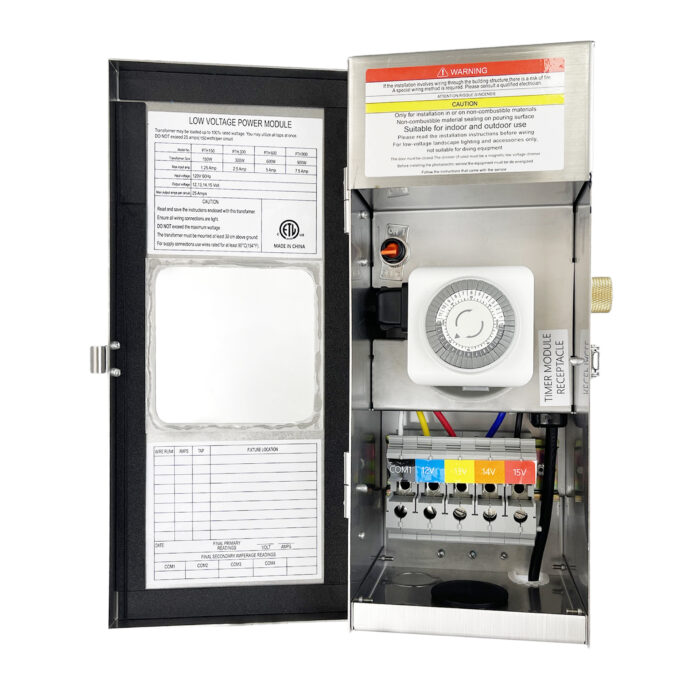

PTH150 Landscape Transformers-PT Hinge Series 150w
Stainless Steel
Multi-tap connections (12V-13V-14V-15V) to allow for short or long runs.
Epoxy encapsulated transformer for quiet and cool operation. Enclosure Material: Powder Coated Steel or Stainless Steel Magnetic circuit breaker on secondary to protect lighting system. Isolation type transformers for safe operation.
6 foot line cord with grounding plug.
Easy opening enclosure with knock-outs for hardwiring and photo control Installation. Din rail mounted terminal board makes wiring capabilities simple and fast.
Labels, complete operating and installation instructions supplied. All units are ETL and CETL listed to U.S. and Canadian safety standards.
“Suitable for wet locations.”
| Model No.: | PT-H150 |
| Installation: | Integrated Junction Box with Multiple ⅞” Knock-Outs |
| Driver Types: | Class 2 and Higher Power Single Tap Options |
| Dimming: | Phase Dimmable with Leading (Forward) Edge MLV TRIAC Dimmer Only |
| Input Voltage: | 120VAC |
| Output Voltage: | 12-13-14-15VAC |
| Environmental: | Dry and Damp |
| Listing: | ETL Listed |
| Warranty: | 5-Year Warranty |
Maximum Number of Wire per Tab (Com1, 12V, 13V, 14V, 15V)
| WIRE GAUGE | WIRE DIAMETER | NUMBER OF WIRE |
|---|---|---|
| 10 AWG | 4.6 mm | 4 pcs |
| 12 AWG | 4.0 mm | 5 pcs |
| 14 AWG | 3.5 mm | 6 pcs |
| 16 AWG | 3.1 mm | 9 pcs |
| 18 AWG | 2.8 mm | 10 pcs |
| INPUT VOLTAGE RANGE | 120V AC |
| OUTPUT VOLTAGE | 12V-13V-14V-15V AC |
| SHORT CIRCUIT PROTECTION | Primary: Auto Reset Thermal Circuit Breaker Secondary: 25A Magnetic Circuit Breaker |
| POWER CORD | 70″ Black 18AWG SJTW Cord and Plug Set |
| CAPACITY | 150Watt |
| COM PORT | 1 |
| BUILT-IN TIMER | None |
| CERTIFICATION | ETL Listed |
-
