Transformer
Non dimmable if use timer or/and photocell
Temperature class B(130°C)
Thermal manually reset secondary breaker 6A
Timer and photocell build in options
Description

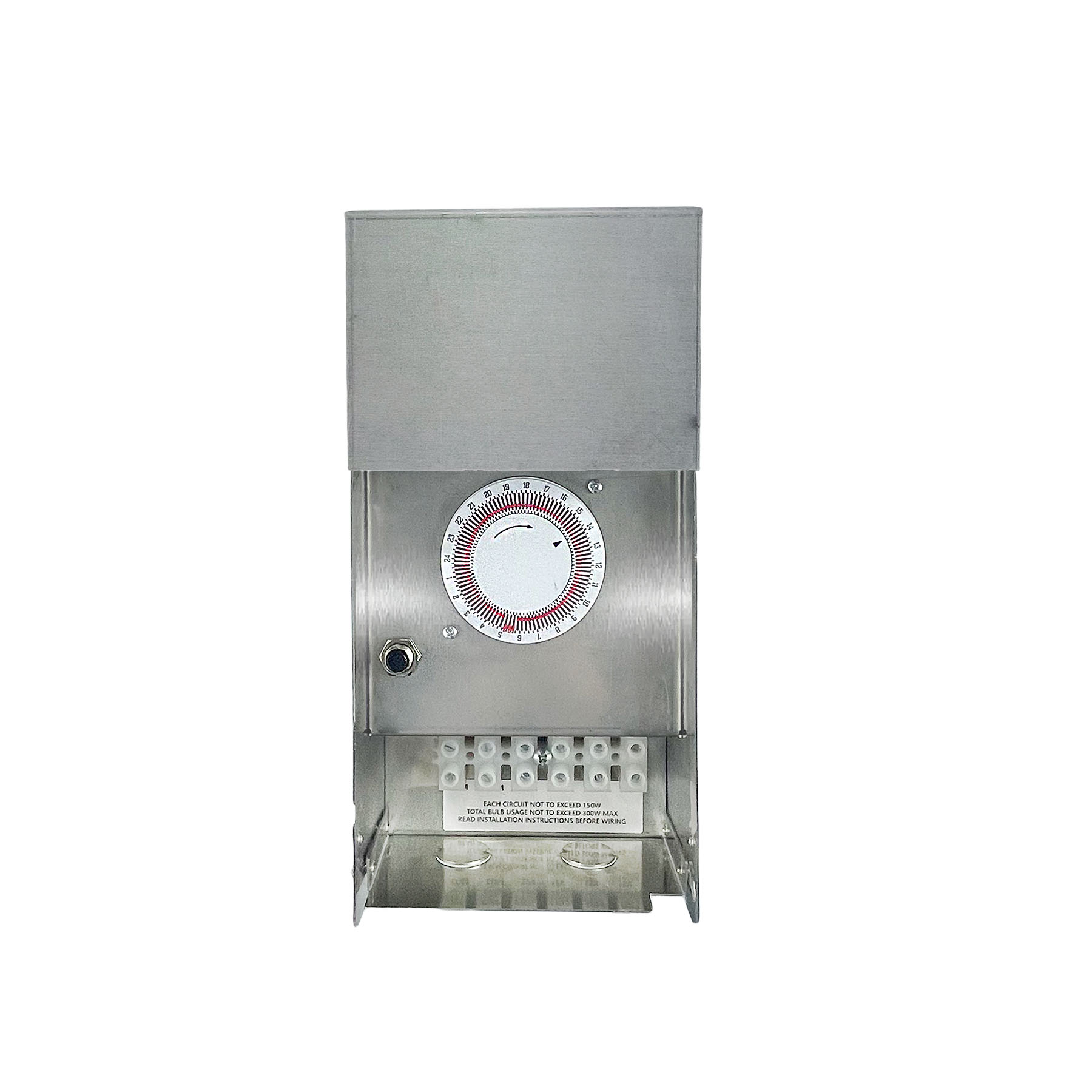

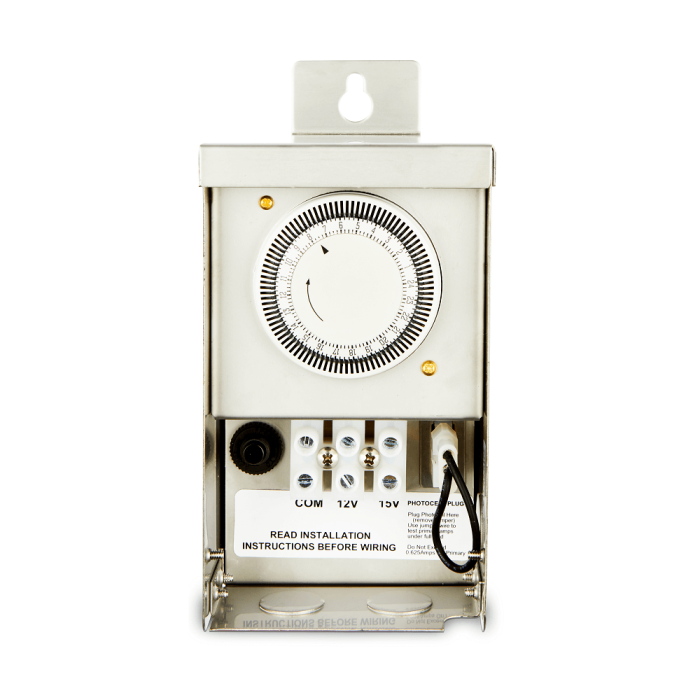

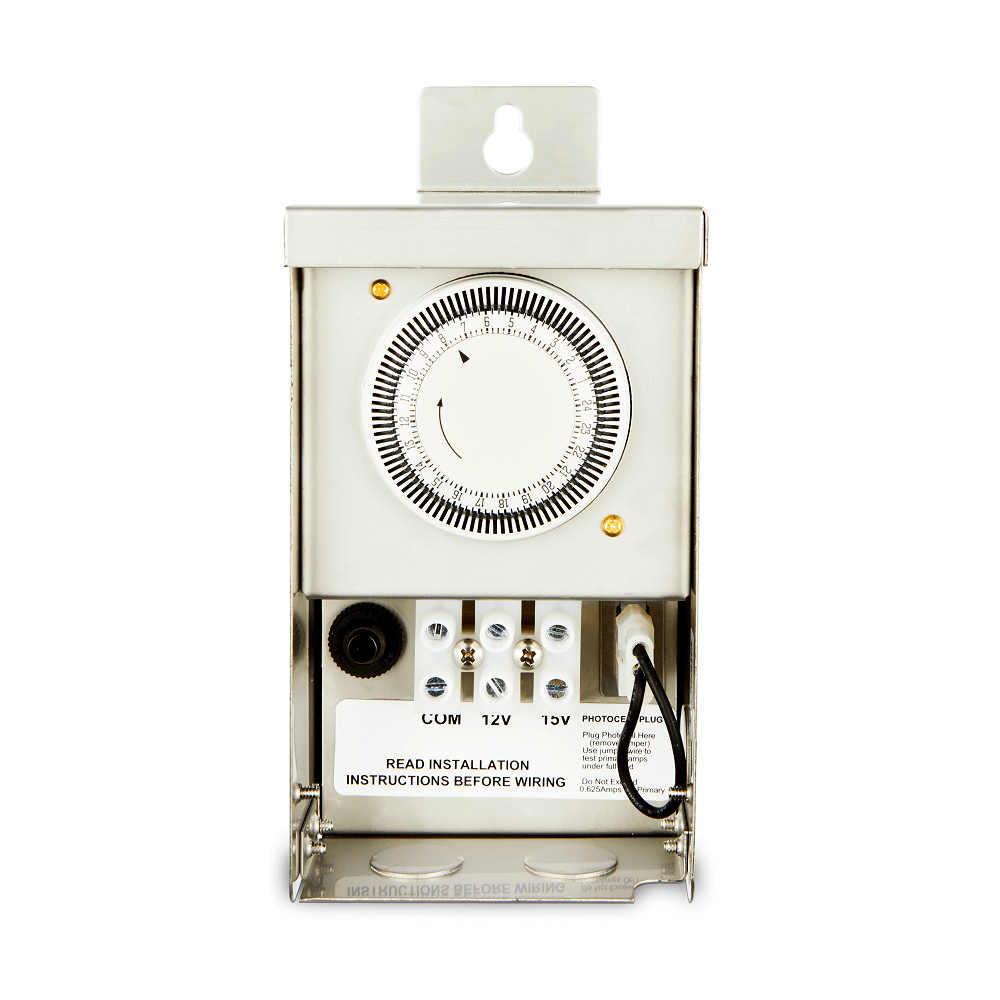

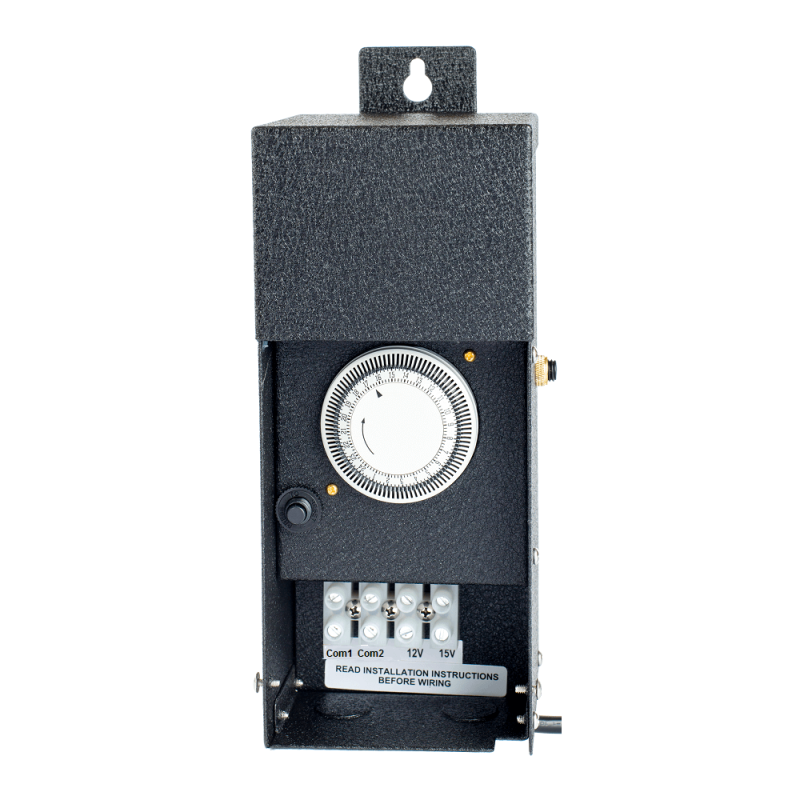

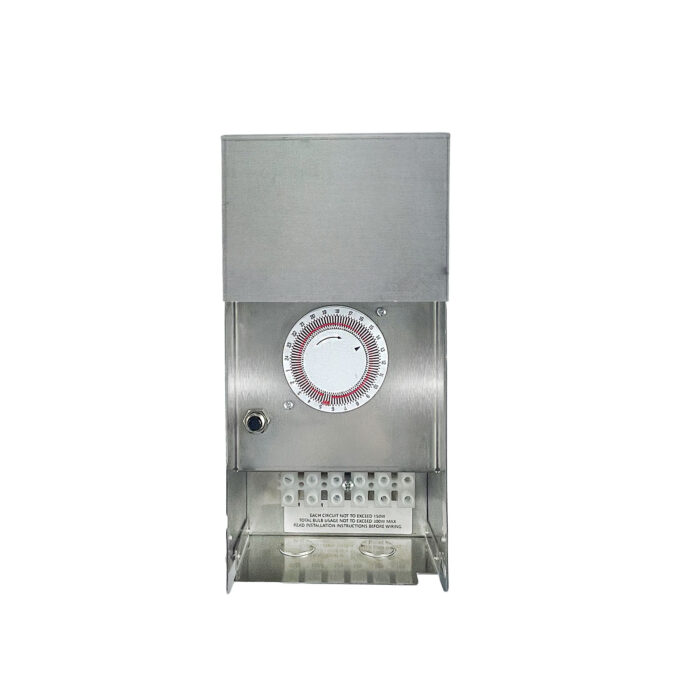

PTS200 Landscape transformer
PTS200Watt Stainless Steel Low Voltage Transformer for low voltage outdoor lighting, landscape lighting, lawn lighting and garden lighting.
Landscape low voltage lighting transformer specifically designed for LED landscape fixtures. The transformer has two output options 12V and 15V for either a short and long distance circuits to compensate wire drop voltage. High grade core and copper winding provide excellent load regulation and efficiency. Build in manual 24h timer and photocell provide full control and energy savings.
Electrical Parameters
| Input Voltage: | 120V 60Hz |
| Max. input current: | 2A at full load |
| Output voltage without load: | 12/ 15VAC |
| Output voltage fully loaded: | 11.5/ 14.5VAC |
| Max. Total Wattage: | 200W |
| Max. Output Current: | 16.7/ 13.3A |
| Efficiency: | 90% |
-
