PTS Series-Slide (photo&timer) – PROWELL Stainless Steel Landscape, Manual Timer, Two Taps, , Low Voltage Series

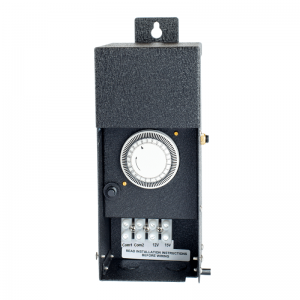

Landscape low voltage lighting transformer specifically designed for LED landscape fixtures. The transformer has two output options 12V and 15V for either a short and long distance circuits to compensate wire drop voltage. High grade core and copper winding provide excellent load regulation and efficiency. Build in manual 24h timer and photocell provide full control and energy savings. Secondary push to reset circuit breaker provide short circuit and overload protection. Removable slide door. Suitable for Wet Location, ETL Listed to UL STD 1838, CSA STD C22.2 250.0 and 250.7

Wattage: 40W, 75W, 100W, 200W and 300W
Output Voltage: 12V, 15V
Input Voltage: 120V 60Hz
All: Built in manual timer and photocell, secondary circuit breaker, line cord, compact, economy solution.

Landscape Transformer PT Series-Slide

Specification Sheet

Landscape Transformers Spec Sheet

Landscape Transformer PT Series-Slide

Installation Guide

Landscape Transformers Installatioin Guide
Lanscape Transformers PT Series-Slide Series Specification
Model No. Wattage Input Voltage Output Voltage Terminal Block Secondary Breaker
Num. of circuits
PT40WS 40W 120V 60Hz 12VAC  or  15VAC single
PT75WS 75W 120V 60Hz 12VAC  or  15VAC single
PT100WS 100W 120V 60Hz 12VAC  or  15VAC single
PT200WS 200W 120V 60Hz 12VAC  or  15VAC single
PT300WS 300W 120V 60Hz 12VAC  or  15VAC single
