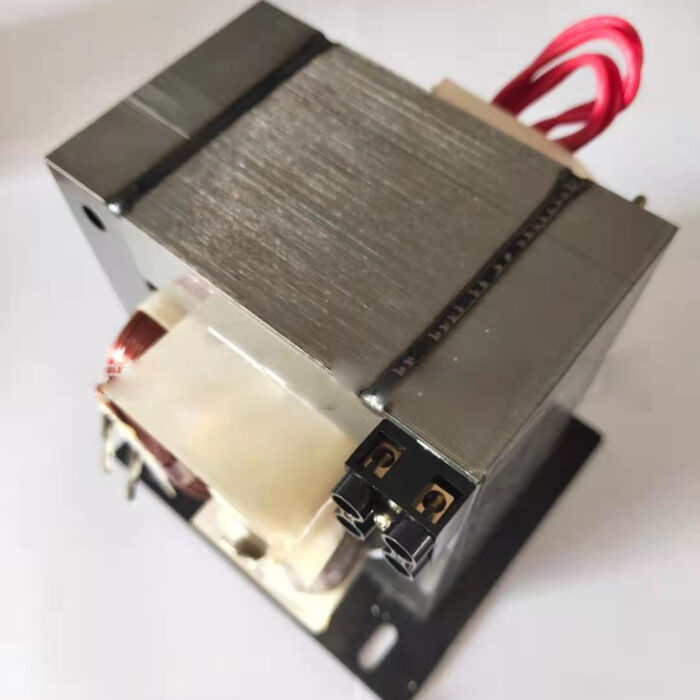

8kg vertical air cooled microwave transformer

1, product weight: 8.0± 0.1kg. Air cooled, can work continuously for 8 hours. After continuous operation for half an hour, the microwave power reaches a stable state without attenuation.

2, suitable for industrial microwave tunnel furnace, box microwave oven.

3, can match Toshiba, Panasonic, Samsung, LG and other brands of magnetron. (Magnetron power is 1KW, capacitance: 1.05uf 2500V)

4, the transformer no-load loss 65W±3W, no-load current 2.3A±0.3A. Load current 6.7A±0.2, positive current 0.28A±0.1A.

5, the mounting hole distance can be customized according to customer requirements. Conventional hole distance is 97mm*97mm.

6. One-year product warranty.

7, input voltage: can be customized according to customer requirements. Conventional output voltage: 2150V. Filament voltage: 3.45V.
